Registered
09 Fozzy XT 4 Hungry aka 4EAT
Joined
·
2,124 Posts
So about a month ago I took it to the (Dynojet)Dyno, plus while I was there, I was going to get a Cobb 3port BC installed. Crappy thing is the new BC was dead. Tuner went ahead and put it on the Dyno anyway, and just made boost on WG Pressure(roughly 11psi) Results were 231/230 It was a warm day (Cannot recall actual temp. though) ..
Mods were 3"TBE, VF52, Cobb SF+Box, via a Cobb AP V3. Riding on 255/45/18 18x9.5s (Reno's Elevation of 4500 ft above sea level)


Sadly had to reschedule a 2nd Dyno run while I contacted Cobb to get a replacement. FF to yesterday afternoon, Temp was 55 degrees Fahrenheit, I had 3/4 of a full tank of 91 oct. from 76 and finally got the new Cobb BC installed. Also had an AVO TMIC as the only other mod installed, besides the previous Dyno run. Tuner decided to keep at a safe level and tune at 17psi. Results were 258/281.. Pretty happy about results.

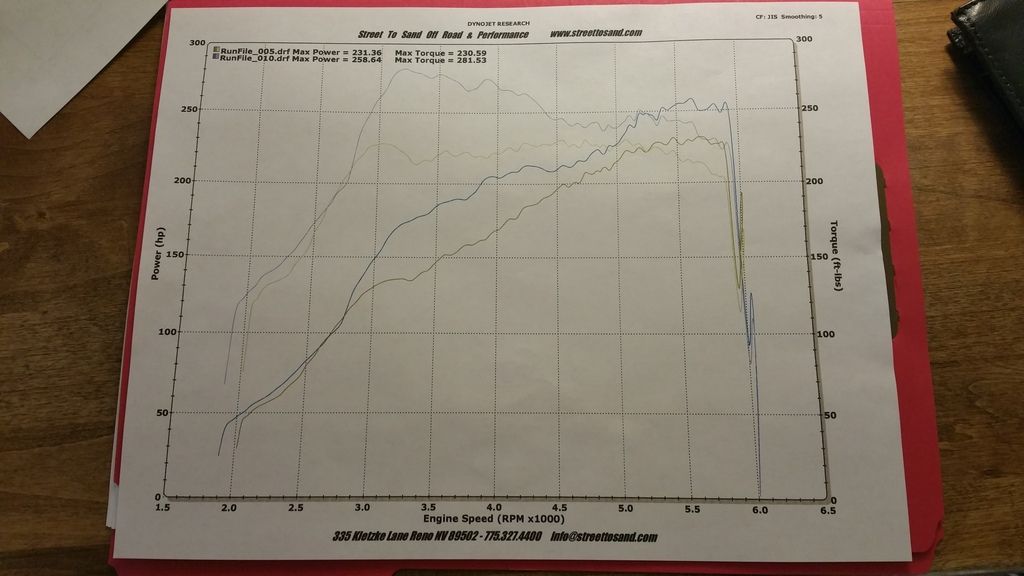

I'll try to insert the Dyno sheet a little later.















·
Registered
2009 2010 X Touring 4EAT
Joined
·
410 Posts
Cant believe I didnt post it in here.. 225/250
Stock '11 EJ257, Stock XT intake, stock XT exhaust
Ex AVCS delete
Cobb 3" catted
Walbro 255
91 Pump Gas



A stock 2012 STI on 91 in S# made 222/250 on the same dyno, for comparisons sake.


·
Registered
2016 Forester XT
Joined
·
32 Posts
Here is a dyno sheet for my 16 FXT. Done on a dynojet. Temp was 64 alt 920'

Nameless TBE w/5" mufflers
Mishimoto charge pipe
Turbo sx tmic
grimmspeed 3 port
Mishimoto trans cooler
Perrin pitch stop
Cobb W/pro tune
Perrin turbo inlet


·
Registered
2016 Forester XT
Joined
·
32 Posts
Sorry it's late

Here is a dyno sheet for my 16 FXT. Done on a dynojet. Temp was 64 alt 920'

Nameless TBE w/5" mufflers
Mishimoto charge pipe
Turbo sx tmic
grimmspeed 3 port
Mishimoto trans cooler
Perrin pitch stop
Cobb W/pro tune
Perrin turbo inlet


Attachments

·
Registered
2015 Forester XT
Joined
·
131 Posts
214hp 268tq

Mods:
TGV deletes
Chargepipe
3 port EBCS

Results: 214 hp and 268 tq on a mustang dyno.

I know some folks on here got their FXT's dyno at the same place, but apparently they have re-calibrated the dyno the past year and as a result is reading lower.

Overall I'm pretty happy for my DD. Wanted to do a baseline, but this shop is 2 hours away. Going to go through some of the dynos of other FA's. Curious to see if they have similar tq curve as mine. I'm peaking at 3,200rpm.



·
Registered
2001 Forester SF
Joined
·
7 Posts
Hey Folks,
two days ago i went to the Ecutekker with my SF :smile2:

The mods so far:

Airinix Airfilter
Impreza BOV
VF28 Turbo
Turboback exhaust system
Sportheader with catless Uppipe

The tuner did a softmap with only 1 bar (14.5 PSI) boost. He said it is better for the old Lady :wink2:
The green line is the result before the new map, as you can see, the vf28 have a huge potential...

The result 263PS / 347NM (256 ft lb)


Attachments

·
Registered
15 Forester XT touring
Joined
·
70 Posts
Stock 2015 FXT.

Stock and then stage 1 tune.
Just got my tune done. makes me wonder if the dyno I was on is ever calibrated. I ended up with 236WHP 253WTQ

At Sealevel on 92oct.

Current MODS
3port ebcs
intake
exhaust

I created a SJ thread if you wanna see my chart.


·
Premium Member
2006 Forester XT 5-Speed Manual
Joined
·
380 Posts
2006 FXT 5-sp

Just had an engine and turbo rebuild (VF39) and re-tune (Cobb Pro-Tune)

I had Wiseco 99.5 forged pistons added.

- Cobb TBE
- VF39
- STi TMIC
- K&N Typhoon Intake (added at tune)
- Perrin Turbo Inlet (added after rebuild)
- Walbro fuel pump (added at tune as I was running lean at WOT...also had to replace MAF meter)
- Grimmspeed Air Splitter

I received a little bit of an ugly surprise at my re-tune. I had an Accessport v1 and found out that my tuner no longer supported that so I had to upgrade (originally tuned in 2007). Since we already had the Walbro fuel pump and K&N Intake installed, I had to buy a v3 Accessport.

310 HP @ 5250 RPM
314 ft-lbs @ 4000 RPM

My new tune is different than my original as it hold power (HP) much better than my old tune. (Though I also had added a Perrin turbo inlet and walbro fuel pump). So at 6250 RPM, I still have 291 HP whereas my old tune was down to 245HP @ 6250 RPM.


·
Registered
2007 Forester Sports XT 5spd Manual
Joined
·
354 Posts
305.8 HP / 328.9 LbFt



2012: Dashed lines = stock TD04, Cobb TBE

2016: Solid lines = VF48, Cobb TBE, Cobb CAI box, Sti TMIC, Walbro GSS342 fuel pump.

Both on 93 Octane at 500 ft elevation, 2012= 90F / 52%humidity, 2016= 57F / 92% humidity


·
Registered
2002 WRX
Joined
·
104 Posts
I had my 04 xt tuned on the dyno yesterday. Here are the results
55 degrees
2287 elevation
92 octane
18.2 psi
301.4 hp at 6750
308.5 ft/lbs at 4700

Cobb TBE
Blouch 16g xtr
walbro 255
ID 1000cc
T1 Fuel Rails
sti catless uppipe
sti p/p exhaust manifold gasket matched
ported throttle body
Turbo XS large topmost
Perrin turbo inlet
cosworth forged pistons
grimspeed ported and deleted TGV
8mm phenolic spacers grimspeed
grimspeed 3 port ebc
grimspeed crosspipe
K&N Panel filter

Im pretty happy with the outcome.


Attachments

·
Registered
2006 Forester XT 5MT
Joined
·
152 Posts
My 06 with an FP Green HTZ:
Built short block, ARP head studs, stock heads, ID1000's, 255 pump, catless 3" exhaust but stock manifold and up pipe, Perrin front mount, converted to speed density, other typical supporting mods like TGV deletes, killer B oil pick up, etc. (too much to list haha)

Running 20psi on 93 octane. The car made 370whp at 21psi but we backed it down to keep it conservative until I get an e85 tune.
