Default 06 Forester XT Replacing Fuel Pump/Fuel Filter

Having just replaced my fuel pump & fuel filter I thought I'd post how to do it. I did learn how to from this site so I'm sorry about doubling up but I really think I fluked finding the post that taught me how, maybe this one might be easier to find! So here goes!


The hatch to gain access to the pump is behind the right hand (as you look from behind) rear seat. To get access you need to remove the foam sections in the cargo area. There's 3 (not including the spare wheel cover which just lifts out. These are all held in with one plastic pin. Just pull them out.


[IMG][/IMG]

4 Phillips head screws hold down the cover. Once they're out you should see this;

[IMG][/IMG]

The white plug is the electrics & just clips in. The orange one, once removed will leak a small amount of fuel so have a rag handy! The other two are painful! The clips on these I just used a pair of pliers to squeeze together & move past the nozzle end. Once that's done you pretty much have to battle with them they're on so tight it took me a good 10 mins of struggling to pull the bigger one off!


There's 8 8mm nuts to take off now, & there is a metal bracket closest to the back of the car which once the nuts are off, just push it out of the way. The whole pump filter assembly will now come out. You'll have to twist it a bit but DON"T FORCE IT the fuel level thing is attached at looks pretty fragile! Just gently wriggle it around & it'll come clear! The fuel level guage thing is the black box attached by a thin piece of steel.


[IMG][/IMG]

Ok so the the cylinder closest to the bottom is the pump. Undo the clips on the hose at the top & the power plug, wriggle the bottom out of the rubber boot & it'll come away. To take the filter off, which is the canister at the top, you need to flip the assembly over on the back you'll see a screw, take it out and the fuel level guage will come away (there's also an electrical plug to undo). In this photo the screw is already out.
.
[IMG][/IMG]

Beneath that is another screw, you'll need to remove this. I had a huge amount of trouble with it and ended up using multigrips to undo it. The metal is really soft and the screw is in really tight. I almost destroyed it as soon as I tried to turn it!

[IMG][/IMG]

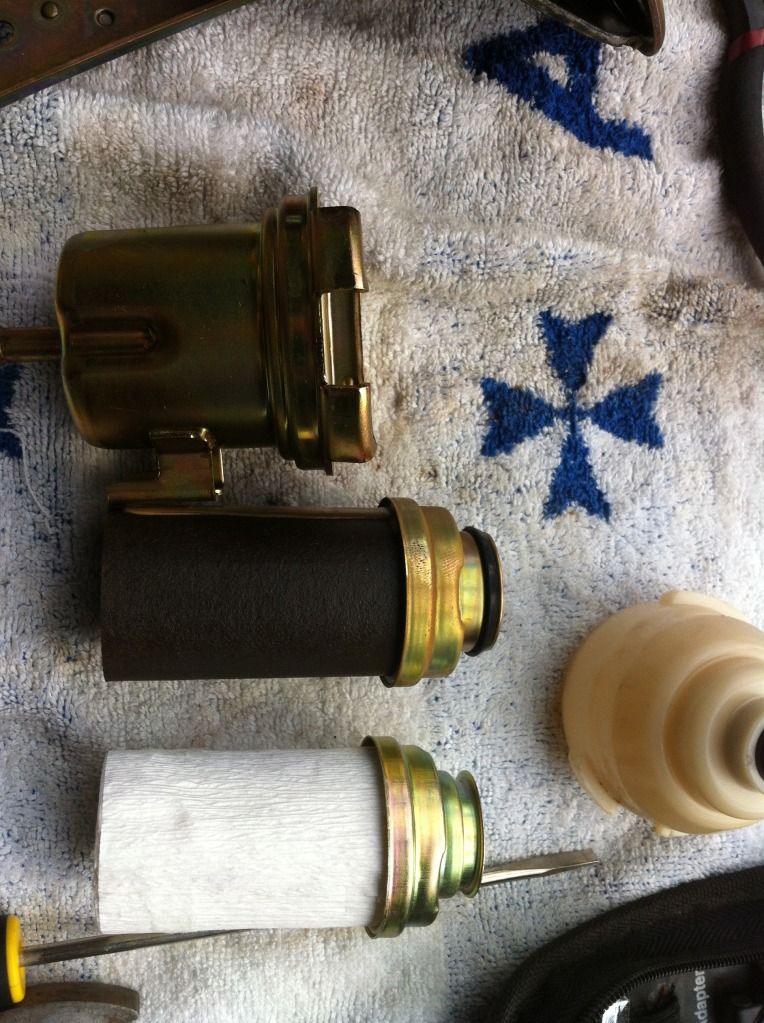

Once this is out you can just pull the canister away. I reused the metal and plastic parts (they just unscrewed) The important part is the inside. My old filter was pretty bad as you can see! The new one is white!!
[IMG][/IMG]

That's it. Just put it all back together in reverse order & enjoy the immediately smoother engine!

As a side note i installed a Walbro 342 255LPH pump which was actually cheaper than the Bosch standard replacement. It's slightly longer than the original so I had to cut the hose that goes from the pump to the filter about 10mm, then it fit perfectly.

This is really not a hard job & I'm glad I blundered through it myself. It's pretty much idiot proof to do. Everything can only go in one way. give it a go!

I'm going to have a MASSIVE gripe here! I installed the Walbro pump as you can see above. Less than 5,00km later it started squealing so I went back to the shop & told them I want it replaced as it's clearly faulty. Their supplier wants to take it & test it before they replace it. Given it's a fairly essential part of the car & I kinda need my car, I agreed with the shop to buy a new one & they can refund me. Well I put the new one in today & 50km later it's squealing too! I dunno about you folks but I want to turn heads cause my car sounds good. Not because it sounds like it's broken & hurts people's ears!! I've done some research & found it's a common problem with Walbro pumps. Now I'm going to be asking for ALL my money back & they can keep the things! I'm gonna go find an STI one at a wreckers or something!

Last edited by AUSMOO; 07-10-2012 at 06:35 AM. Reason: Update
